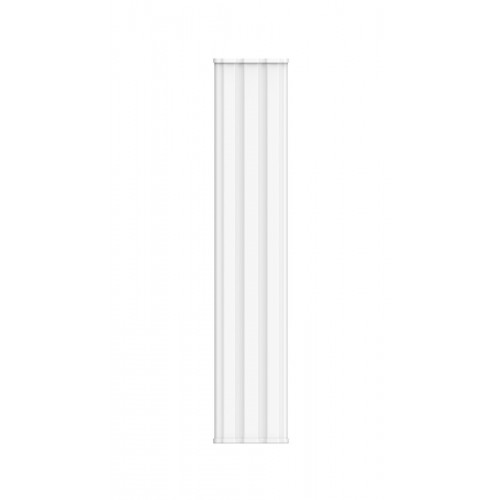

The Ruijie-Reyee RG-ANT20S-90 is an external sector antenna for outdoor bridges, featuring 5 GHz 2×2 MIMO technology, two spatial streams, up to 20 dBi gain with a horizontal angle of 90° and a vertical angle of 7°. It is specifically designed for the RG-AirMetro550G-B bridge for PTMP scenarios, covering a range of up to10 km.

Highlight Features:

• 5 GHz, 2 dBi Antenna Gain
• Angle H:90°, V:7°
• Up to 10 km Working Distance
• IP55 Rating against Harsh Environment
• 220.32 km/h (137 mph) Wind Survivability
• All-in-one Cloud Management Simplifies the User Journey

Technical Specifications:

• Frequency Range: 5.15 – 5.85 GHz
• Gain: 20 dBi
• HPOL Beamwidth: 90˚ (6 dB)
• VPOL Beamwidth: 90˚ (6 dB)
• Elevation Beamwidth: 7° (6 dB)
• Electrical Downtilt: 0°
• Max. VSWR: 2.0:1
• Wind Survivability: 220.32 km/h (137 mph)
• Wind Loading: 227 N @ 220.32 km/h (20.9 lbf @137 mph)
• Polarization: ±45°
• Cross-Pol Isolation: 20 dB Min.
• Mounting: Pole-mount
• IP Rating: IP55
• Certification: CE
• MTBF: > 400000 hours

Dimensions:

• Unit Dimensions: 694 × 139.9 × 48.9mm (without mounting bracket)
• Net weight: 3.8kg
• Package Dimensions (LxWxH): 756*201*177mm
• G. Weight: 4.5kg

Temperature and Humidity Requirements:

• Operating Temperature: -40°C to 80°C (-40°F to 176°F) excluding the power adapter
• Storage temperature: –40°C to 85°C (–40°F to 185°F)
• Operating Humidity: 5% to 95% RH (non-condensing)
• Storage humidity: 5% to 95% RH (non-condensing)
