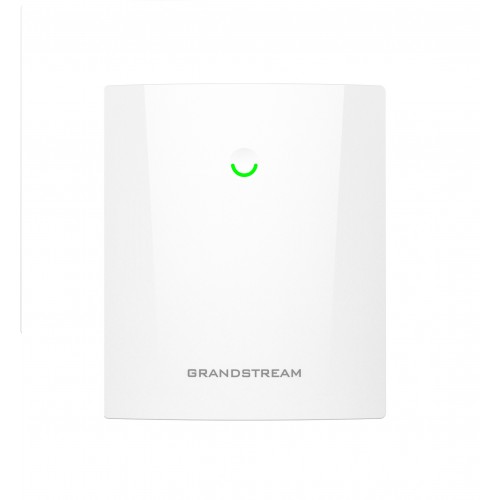

The GWN7660ELR is an enterprise-grade long range Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It supports weatherproof casing and heat resistant technology, dual-band 2×2:2 MU-MIMO with XTRA Range technology and a sophisticated antenna design for maximum network throughput that supports 256 clients and an expanded 300-meter coverage range. It also provides IP67 weatherproof and dust-proof ability, as well as -30 to 60°C operating temperature, this ensures that the Wi-Fi 6 access point can operate properly in difficult weather conditions.To ensure easy installation and management, the GWN7660ELR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7660ELR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, Bluetooth® Low Energy (BLE) 5.2, a gigabit Ethernet port with PoE/PoE+ and a 2.5 Gigabit SFP port with PoE/PoE+. The GWN7660ELR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools, and more.

Key Features & Benefits:

• Dual-band 2×2:2 MU- MIMO with XTRA Range technology
• Flexibility of 5 internal antennas
• 3Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput
• Up to 300-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Self power adaptation upon auto detection of PoE/PoE+
• IP67-level weatherproof capability
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data
• Control lockdown via digital signatures, unique security certificate
• Random default password per device
• Embedded controller can manage up to 50 local GWN series APs
• GWN.Cloud offers unlimited AP management
• GWN Manager offers premise-based software controller
• 3 Year Warranty

Specifications:

• Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax
• Antennas:
  – 5 individual internal antennas
  – 2.4GHz x 2 , gain 5.5 dBi
  – 5 GHz x 2, gain 6.0 dBi
• Wi-Fi Data Rates:
  5G:
  – IEEE 802.11ax: 7.3 Mbps to 2403 Mbps
  – IEEE 802.11ac: 6.5 Mbps to 1734 Mbps
  – IEEE 802.11n: 6.5 Mbps to 300 Mbps
  – IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  2.4G:
  – IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
  – IEEE 802.11n: 6.5 Mbps to 300 Mbps
  – IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  – IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Frequency Bands:
  – 2.4GHz radio: 2412 – 2484 MHz
  – 5GHz radio: 5180 – 5825 MHz
• Channel Bandwidth:
  – 2.4G: 20 and 40 MHz
  – 5G: 20, 40, 80 and 160 MHz
• Wi-Fi and System Security:
  – WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES)
  – WPA3, anti-hacking secure boot and critical data
  – Control lockdown via digital signatures, unique security certificate
  – Random default password per device
• MU-MIMO: 2×2:2 2.4GHz, 2×2:2 5GHz
• Coverage Range: Up to 300 meters
• Maximum TX Power:
  – 5G: 26dBm
  – 2.4G: 27dBm
• Receiver Sensitivity:
  2.4G:
  – 802.11b: -96dBm @1Mbps, -88dBm @11Mbps;
  – 802.11g: -93dBm @6Mbps, -75dBm @54Mbps;
  – 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
  – 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11
  5G:
  – 802.11a: -90dBm @6Mbps, -72dBm @54Mbps;
  – 802.11n: 20MHz: -71dBm @MCS7; 802.11n 40MHz: -68dBm @MCS7
  – 802.11ac 20MHz: -65dBm @MCS8; 802.11ac: 40MHz: -61dBm @MCS9; 802.11ac 80MHz: -57dBm @MCS9;
  – 802.11ac 160MHz: -55dBm @MCS9;
  – 802.11ax 20MHz: -58dBm @MCS11; 802.11ax 40MHz: -56dBm @MCS11; 802.11ax 80MHz: -54dBm @MCS11;
  – 802.11ax 160MHz: -51dBm @MCS11;
• SSIDs: 32 SSIDs total, 16 per radio (2.4GHz and 5GHz)
• Concurrent Clients: 256
• Network Interfaces: 1x 1G Port and 1x 2.5G SFP Port
• Bluetooth®: BLE 5.2
• Auxiliary Ports: 1x Reset Pinhole, 1x Kensington lock
• Mounting: Wall mount or pole mount, kits included
• LEDs: 1 tri-color LED for device tracking and status indication; 1 single-color LED for SFP
• Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS: 802.11e/WMM, VLAN, TOS
• Network Management:
  – Embedded controller can manage up to 50 local GWN APs
  – GWN.Cloud offers a free cloud management platform for unlimited GWN APs
  – GWN Manager offers premise-based software controller for up to 3,000 GWN APs
• Power and Green Energy Efficiency:
  – PoE 802.3af/802.3at;
  – Maximum Power Consumption: 13W
• Environmental:
  – Operation:-30°Cto 60°C
  – Storage: -30°C to 70°C
  – Humidity: 5% to 95% Non-condensing
  – Weatherproof Grade: IP67-level weatherproof capability when installed vertically
• Physical:
  – Unit Dimensions: 270mm x 230mm x 57mm
  – Unit Weight: 1Kg
  – Entire Package Dimensions: 439mm x 329mm x 137mm
  – Entire Package Weight: 2.4Kg
• Package Content:
  – GWN7660ELR Outdoor Wireless AP
  – Mounting Kits
  – Quick Start Guide
• Compliance: FCC, CE, RCM, IC
